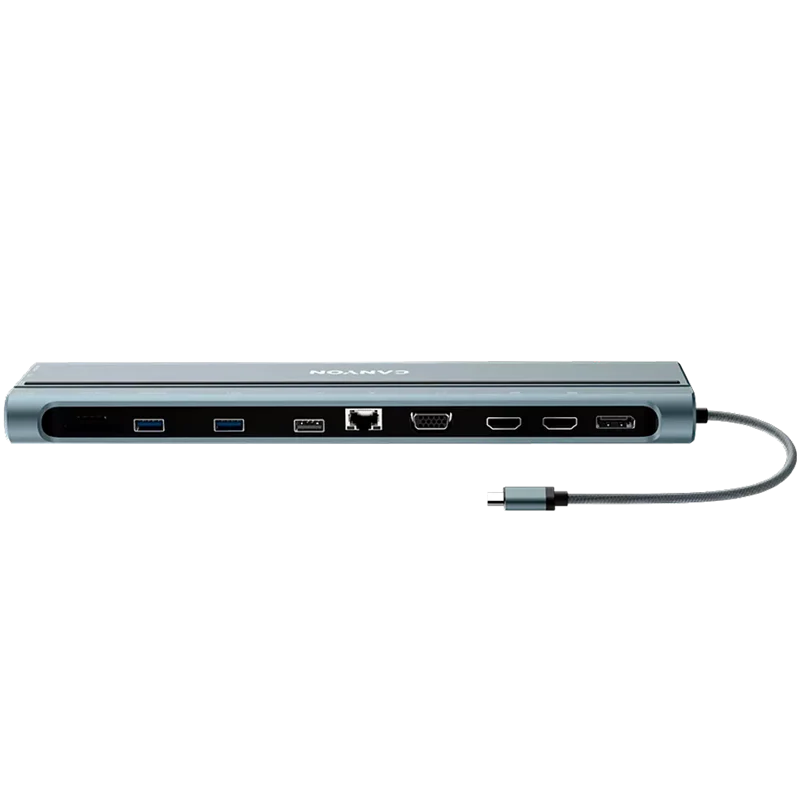

14 port USB-C Hub DS-90

Product features

1*USB-A 3.2 Gen 2 10 Gbps;
1*USB-A 3.0 5 Gbps;
1*USB-A 2.0 480 Mbps;
1*USB-С 3.2 Gen 2 10 Gbps;
Ethernet 1000 Mbps;
3,5mm audio output;
48K stereo;
SD/TF slots;
2*4K UHD (60Hz);
VGA resolution up to 1080P*60 Hz;
DP (4Kx60Hz);
Simultaneous work with 4 monitors;
Aluminum case;
Integrated braided cable 20cm;
12 LED indicators;
Security lock hole for safety;
Heat radiating holes;
Power on/off button;
Compatible with MAC OS, Windows OS.

14 PORT USB-C HUB DS-90

If your laptop is equipped with USB type-C, this universal docking station CNS-HDS90, which is the 3rd generation of the popular model, will improve its connectivity features with 14 built-in ports to the maximum. Using Display Port (4Kx60Hz) and VGA, you can connect your laptop to four monitors simultaneously. The up to 100W USB-C PD charging port allows you to charge your connected device at optimal speed. Also, the USB hub Canyon HDS90 has built-in 3.5mm audio jack for headphones/microphone, SD and TF card reader, Ethernet for flawless internet connection and USB-С 3.2 Gen 2 for fast data transferring. The Hub CNS-HDS90 for 14 ports will make your workspace look stylish and modern.

CHARACTERISTICS

FEATURE

Abbreviated Description14 in 1 hub
Provides Ports3.5 mm Headset Jack
Ethernet
DisplayPort
HDMI
VGA
USB
InterfaceUSB Type C
Built-in DevicesCard Reader (SD)
Card Reader (MicroSD)
Cable Length0.2 m
External ColorDark Gray

WARRANTY

Warranty Term (month)24 month(s)

ADDITIONAL INFORMATION

Marketing Model NameDS-90
Commercial NameHub Canyon DS-90 14in1 USB-C Space Grey (CNS-HDS90)

INTERFACE PROVIDED

HDMI2 (HDMI (Type A))
USB2 (USB Type-C)
LAN1 (RJ-45)
Audio Interface1 (3.5-mm minijack)
VGA1 (15-pin D-sub)
DisplayPort1
USB 3.2 Gen 23 (USB 3.2 (type A))

DIMENSIONS & WEIGHT

Width (mm)76 mm
Height (mm)22.5 mm
Depth (mm)301 mm

Cable & Charger

USB-C to USB-C Cable(1.2m)

USB 3.0 Gold Plated Cable(1.8m)
